£194.99

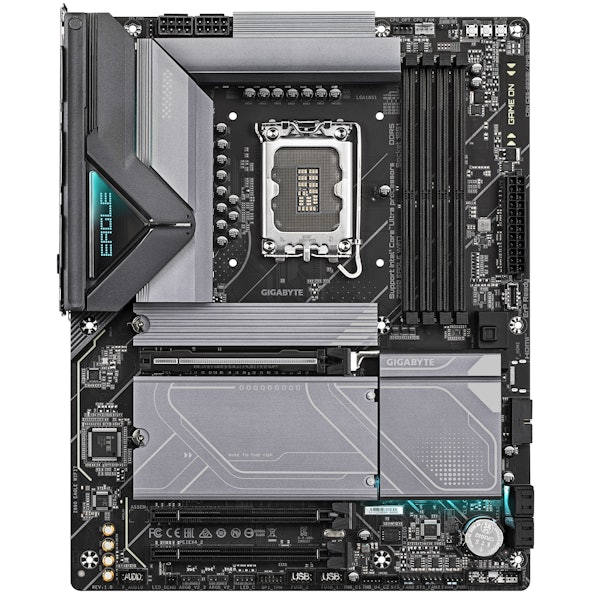

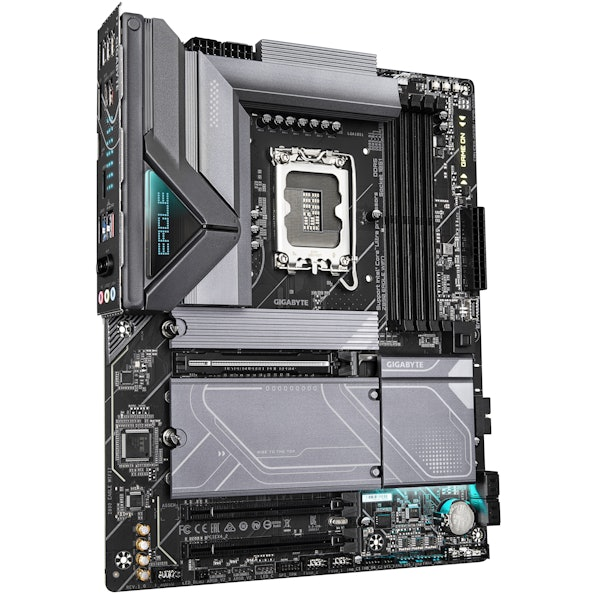

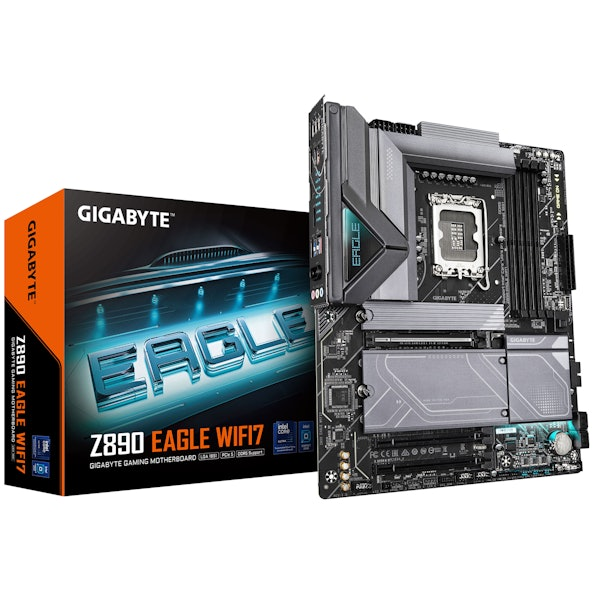

Intel Core Ultra Compatible, LGA 1851 Socket, Z890, PCIe Gen 5, ATX, 4x DIMM slots, DDR5 8800MHz (OC), 4x M.2 , 4x SATA, 2.5Gb LAN, WIFI 7, 10x USB, Type-C USB
| Feature | Details |
|---|---|
| CPU | LGA1851 socket: Support for Intel® Coreâ„¢ Ultra Processors L3 cache varies with CPU * Please refer to “CPU Support List” for more information. |
| Chipset | Intel® Z890 Express Chipset |
| Memory | Support for DDR5 8800(O.C) to 5600 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory. Dual channel memory architecture. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode). Support for Extreme Memory Profile (XMP) memory modules. * Please refer to “Memory Support List” for more information. |
| Onboard Graphics | Integrated Graphics Processor – Intel® HD Graphics support: – 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs, max resolution: 3840×2160@144 Hz. – 1 x DisplayPort, max resolution: 3840×2160@144 Hz. * Support for DisplayPort 2.1 version. |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication Module | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) – Supports 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz bands. – Bluetooth 5.4 Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) – Supports 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz bands. – Bluetooth 5.4 * Wi-Fi 7 features require Windows 11 SV3 to function properly. |
| Expansion Slots | CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 at x16 (PCIEX16) Chipset: – 2 x PCI Express x16 slots, supporting PCIe 4.0 at x4 (PCIEX4_1/2) |
| Storage Interface | CPU: – 1 x M.2 connector for PCIe 5.0 x4/x2 SSD (M2A_CPU) – 1 x M.2 connector for PCIe 4.0 x4/x2 SSD (M2B_CPU) Chipset: – 1 x M.2 connector for PCIe 4.0 x4/x2 SSD (M2Q_SB) – 1 x M.2 connector for SATA and PCIe 4.0 SSD (M2M_SB) – 4 x SATA 6Gb/s connectors |
| USB | CPU: – 1 x USB4® USB Type-C® port on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2 support – 2 x USB 3.2 Gen 2 Type-A ports (red) – 5 x USB 3.2 Gen 1 ports |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button |

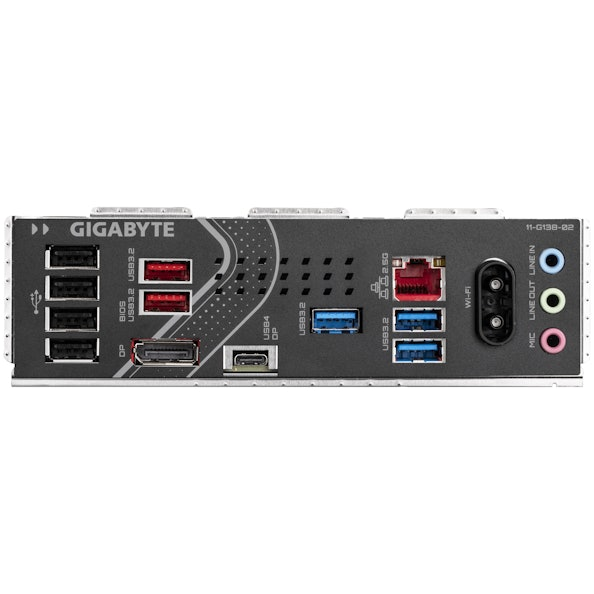

| Back Panel Connectors | 1 x USB4® USB Type-C® port (DisplayPort) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| BIOS | 1 x 256 Mbit flash Licensed AMI UEFI BIOS |
| Unique Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash and Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Form Factor | |
| Motherboard formfactor | ATX |
| Wi-Fi & LAN | |
| LAN | Yes |
| LAN Ports | 1x (in total) |
| Wi-Fi / Bluetooth | Yes |
| Wi-Fi Standard | Wi-Fi 7 |
| Motherboard | |
| Motherboard Chipset | Intel Z890 |
| Built-In I/O Shield | Yes |
| Back Connect | |
| Back Connect | No |
| CPU | |
| CPU Manufacturer | Intel |
| CPU Socket | 1851 |
| Lighting | |
| Lighting / RGB | Yes |
| Colour | |
| Primary Colour | Black |
| Dimensions | |
| Length / Depth | 305 mm |
| Width | 244 mm |
| External Ports | |
| USB4 Gen 2×2 (external) Type C | 1 |
| USB 3.1 (external) Type A | 2 |
| USB 3.0 (external) Type A | 3 |
| USB 2.0 (external) Type A | 4 |
| Fan Header | |
| 4 Pin Fan Connectors | 6 |
| Memory | |
| Max. Memory | 256 GB |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Max. Memory Speed (OC) | 8800 MT/s |
| EEC Support | No |
| Memory slots | 4x |
| Performance Profile | Intel XMP 3.0 |
| Internal Ports | |
| CPU Power Supply | 2x 8-Pin |
| USB 3.0 / 3.1 / 3.2 (internal) Type C Header | 1 |
| USB 3.0 (internal) Header | 1 |
| USB 2.0 (internal) Header | 2 |
| Front Panel Audio Header | Yes |
| Expansion Slots | |
| PCIe x16 slots (total) | 3 |
| PCIe 5.0 x16 mechanical slot | 1 |
| PCIe 4.0 x16 mechanical slot | 2 |
| Cooling | |
| Backplate | No |
| M.2 Heatsinks | Yes |
| VRM Heatsinks | Yes |
| Storage Ports | |
| M.2 PCIe 4.0 x4 | 3 |
| M.2 PCIe 5.0 x4 | 1 |
| SATA 6G (internal) | 4 |
| Audio | |
| Soundchip | Realtek ALC897 |
