£151.00

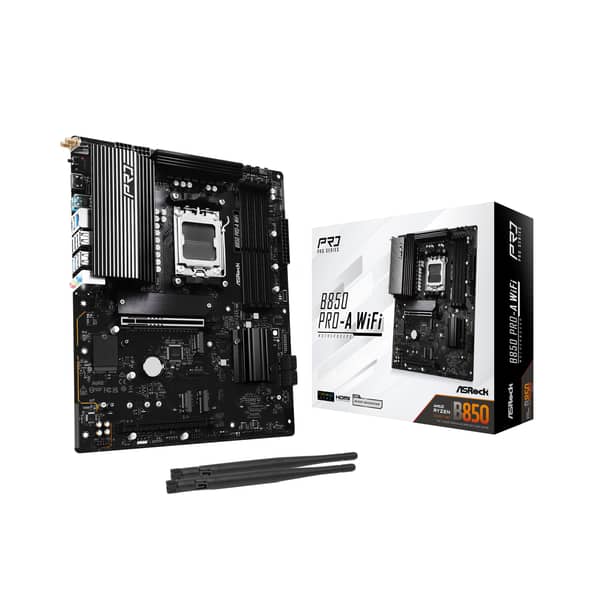

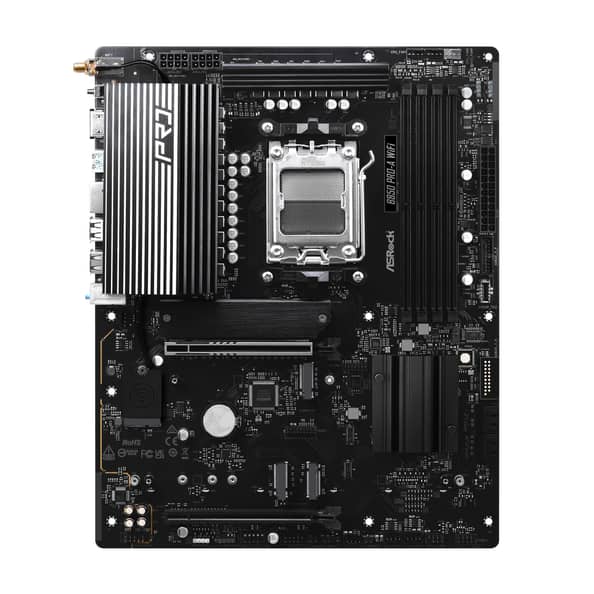

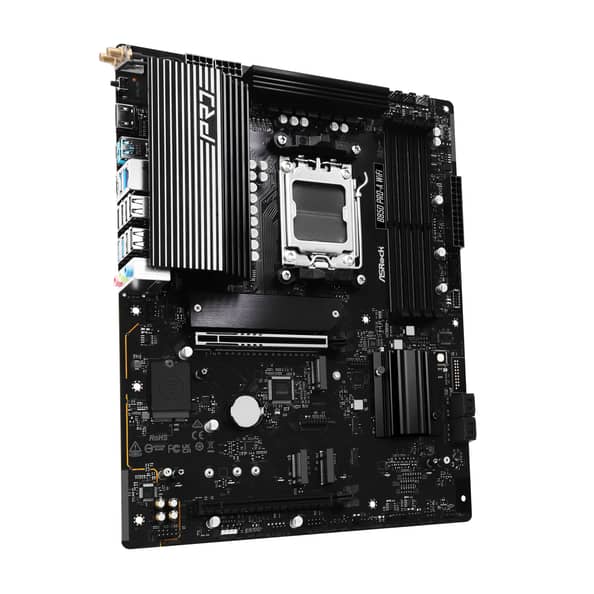

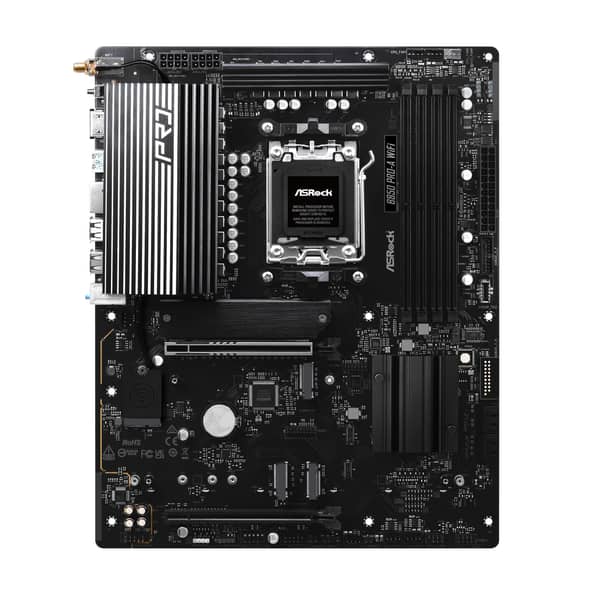

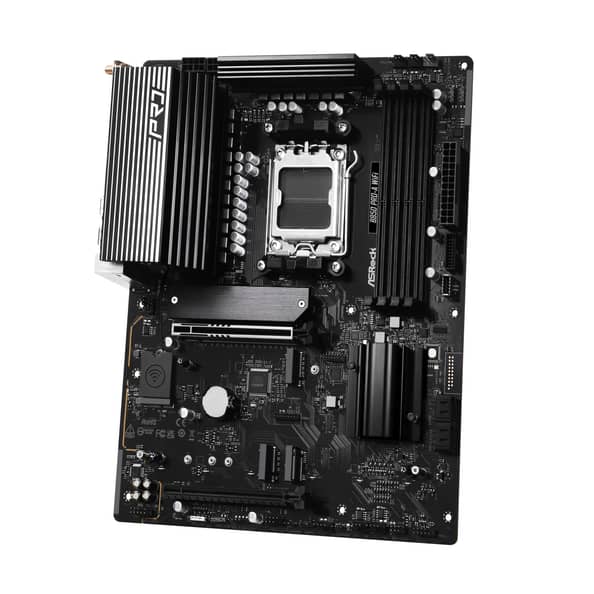

Socket AM5, B850 Chipset, Supports 7000/8000/9000 series AMD Ryzen, 4x DIMM Slots, DDR5 8000MHz (OC), PCIe Gen 5, 4x SATA 6Gb/s connectors, 4x M.2 Slot, 2.5GB LAN, ATX
| Detailed Specification | |
|---|---|
| Memory | |
| Memory Technology | Dual Channel DDR5 |
| DIMM Slots | 4 x DDR5 DIMM Slots |
| Memory Support | Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)* |
| Max Capacity | 256GB |
| Overclocking Support | Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| CPU | |
| PCIe 5.0 Slot | 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* |
| PCIe 4.0 Slot | 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* |
| M.2 Socket (WiFi/BT) | 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Expansion Slot | 15ฮผ Gold Contact in VGA PCIe Slot (PCIE1) |
| Graphics | |
| Integrated Graphics | Integrated AMD RDNAโข graphics (Actual support may vary by CPU) |
| HDMI Port | 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3, max resolution up to 4K 120Hz |
| USB Type-C (DisplayPort) | 1 x USB 3.2 Gen1 Type-C, supports DP 1.4 HBR3, max resolution up to 4K 60Hz (DP-alt mode supports DP1.4a) |
| Audio | |
| Audio Codec | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Dragon RTL8125BG |
| Software Support | Dragon 2.5G LAN Software with features like Smart Auto Adjust Bandwidth Control, Visual UI, etc. |
| Wireless LAN | |
| Wi-Fi Module | 802.11axe Wi-Fi 6E Module, supports Dual-Band 2×2 with extended 6GHz band |
| Bluetooth | Supports Bluetooth 5.2 |
| MU-MIMO Support | Supports MU-MIMO |
| USB | |
| USB Ports (CPU) | 1 x USB 3.2 Gen2 Type-C (Rear), 1 x USB 3.2 Gen1 Type-C (Rear), 2 x USB 3.2 Gen1 Type-A (Rear) |
| USB Ports (Chipset) | 1 x USB 3.2 Gen2x2 Type-C (Front), 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front), 9 x USB 2.0 (6 Rear, 3 Front) |
| Rear Panel I/O | |
| Ports | 2 x Antenna Ports, 1 x HDMI Port, 1 x USB 3.2 Gen2 Type-C Port, 1 x USB 3.2 Gen1 Type-C Port, 4 x USB 3.2 Gen1 Type-A Ports, 6 x USB 2.0 Ports, 1 x RJ-45 LAN Port, 1 x BIOS Flashback Button, HD Audio Jacks |
| Storage | |
| M.2 Sockets | 1 x Blazing M.2 Socket (M2_1, PCIe Gen5x4), 1 x Hyper M.2 Socket (M2_2, PCIe Gen4x4), 1 x Hyper M.2 Socket (M2_3, PCIe Gen4x4), 1 x Ultra M.2 Socket (M2_4, PCIe Gen3x4) |
| SATA3 Connectors | 2 x SATA3 6.0 Gb/s Connectors, 2 x SATA3 6.0 Gb/s Connectors (ASMedia ASM1061) |
| RAID Support | RAID 0, RAID 1 for SATA, RAID 0, RAID 1, RAID 10 for M.2 NVMe |
| Connector | |
| Fan Connectors | 2 x CPU Fan Connectors (4-pin), 4 x Chassis Fan Connectors (4-pin), 1 x AIO Pump Fan Connector (4-pin) |
| Power Connectors | 1 x 24 pin ATX Power Connector, 2 x 8 pin 12V Power Connectors |
| USB Headers | 2 x USB 2.0 Headers, 1 x USB 3.2 Gen1 Header, 1 x Front Panel Type C USB 3.2 Gen2x2 Header |
| Software and UEFI | |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Utilities | ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC |
| OS Support | Microsoftยฎ Windowsยฎ OS 10 64-bit / 11 64-bit |
| Certifications | FCC, CE, ErP/EuP ready (power supply required) |
| Accessories | |
| Included Items | 1 x I/O Shield, 2 x SATA Data Cables, 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
| Platform | |
| Form Factor | ATX, 12.0-in x 9.6-in (30.5 cm x 24.4 cm) |
| PCB Layers | 8 Layer PCB |
| CPU Support | Supports AMD Socket AM5 Ryzenโข 9000, 8000, and 7000 Series Processors* |
| Unique Features | |
| Productivity | PCIe Gen5 (Graphics, M.2), Dual Channel DDR5 |
| Durability | 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC |
| Connectivity | 2.5G LAN, 802.11axe Wi-Fi 6E Module |
| EZ Update | BIOS Flashback Button, ASRock Auto Driver Installer |
| EZ Troubleshooter | ASRock Post Status Checker |
| Chipset | AMD B850 |
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC ัompatibility | ECC & Non-ECC |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2×2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 4 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 2 |
| TPM connector | Yes |
| 12V power connector | Yes |
| Number of water pump connectors | 1 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 1 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 3 |
| Line-in | Yes |
| Microphone in | Yes |
| WiFi-AP antenna jack | 2 |
| USB connector type | USB Type-A, USB Type-C |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Dragon RTL8125BG |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Features | |
| Motherboard chipset | AMD B850 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Certification | FCC, CE, ErP/EuP |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Cables included | SATA |
| Antenna included | Yes |
