£143.99
Most items are in stock at our Lewisham shop. Anything not on the shelf is sourced within 5–7 working days. Call 020 8037 0653 to check before you travel.

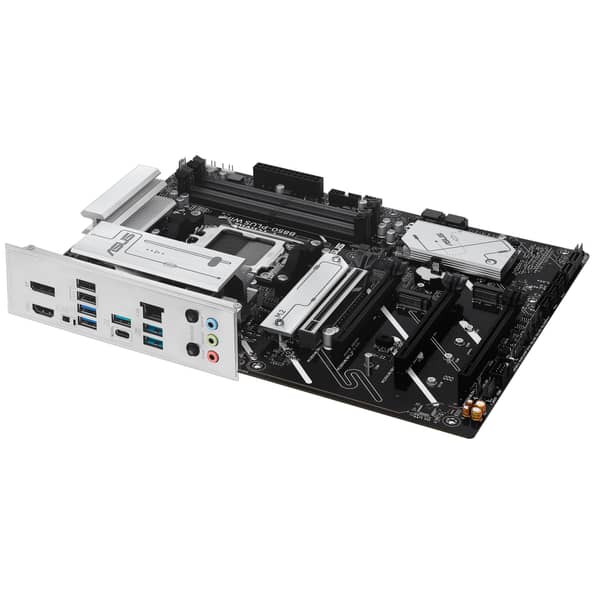

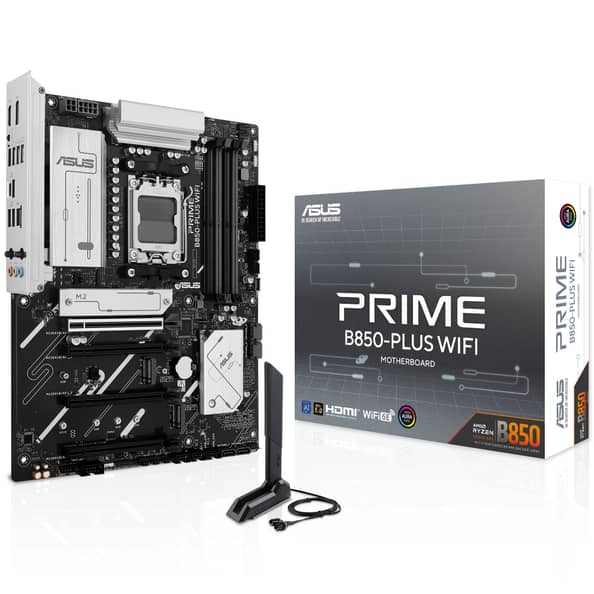

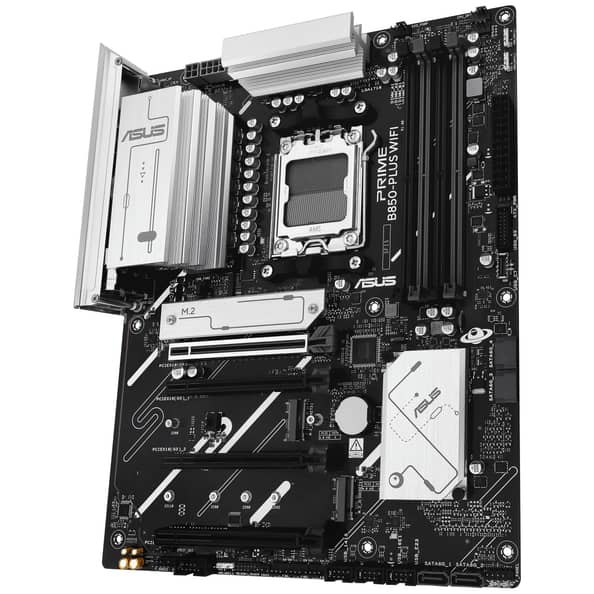

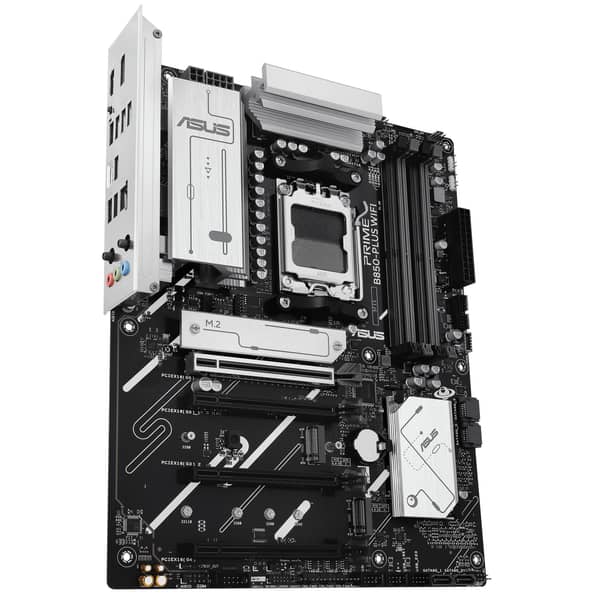

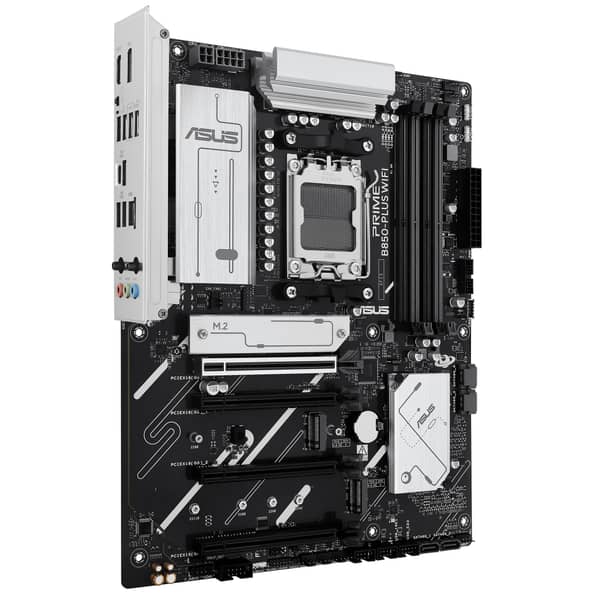

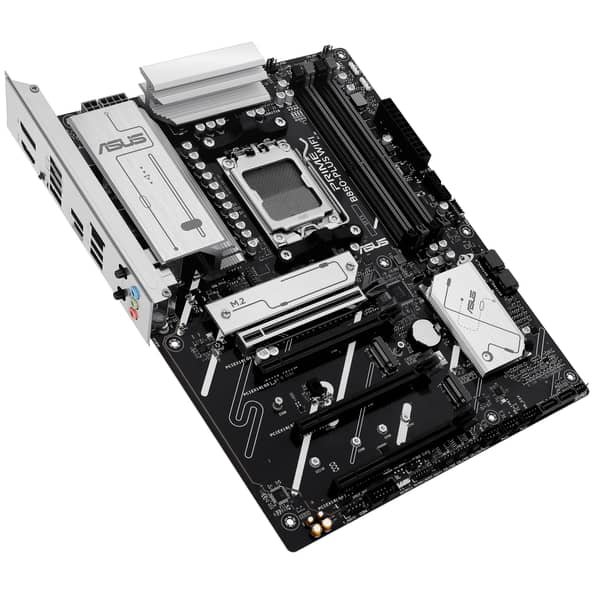

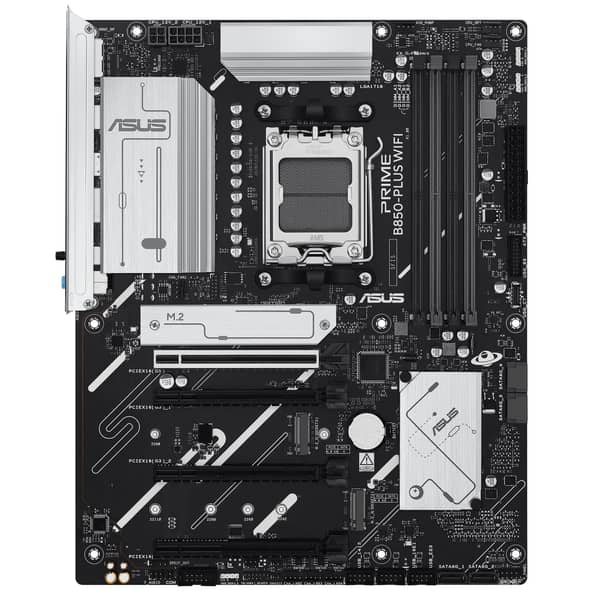

| Model | PRIME B850-PLUS WIFI |
|---|---|
| CPU Support | AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series CPU Support List |
| Chipset | AMD B850 |
| Memory | 4 x DDR5 DIMM slots, up to 256GB Up to 8000+ MT/s (OC) ECC and Non-ECC, Un-buffered Dual Channel, EXPO™, AEMP Support On-Die ECC supported (DDR5) |
| Graphics Outputs | 1 x DisplayPort (max. 8K@30Hz, DP 1.4) 1 x HDMI (max. 4K@60Hz, HDMI 2.1) * Depends on CPU |
| Expansion Slots | Ryzen 9000/7000: 1 x PCIe 5.0 x16 Ryzen 8000: 1 x PCIe 4.0 x16 (x8/x4) Chipset: 1 x PCIe 4.0 x16 (x4) 2 x PCIe 3.0 x16 (x1 each) * SATA6G_1/2 disabled if PCIEX16(G3)_1/2 are used |
| Storage | 3 x M.2 (PCIe 5.0 / 4.0, varies by CPU) 4 x SATA 6Gb/s RAID Support: – Ryzen 9000: RAID 0/1/5/10 – Ryzen 8000: RAID 0/1 – Ryzen 7000: RAID 0/1/10 |

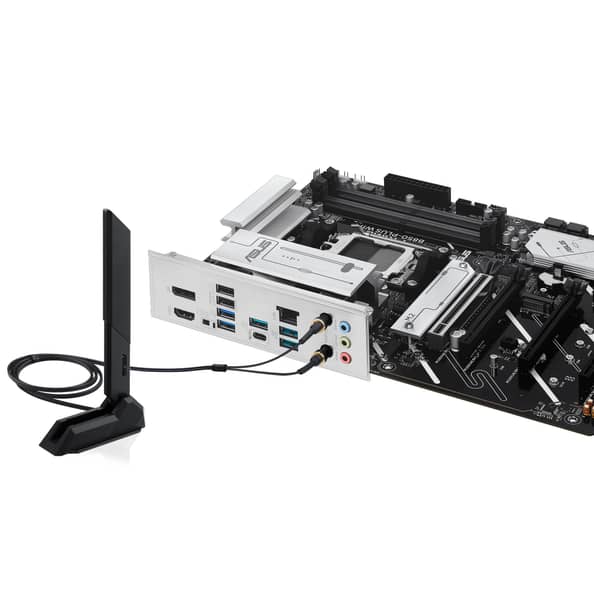

| Networking | 1 x Realtek 2.5Gb Ethernet (ASUS LANGuard) Wi-Fi 6E (2×2, 2.4/5/6GHz)* Bluetooth® v5.3** * Wi-Fi 6E requires Windows 11+ ** Version may vary by module |
| Rear USB Ports | 4 x USB 10Gbps (3 x Type-A, 1 x Type-C) 2 x USB 5Gbps (Type-A) 2 x USB 2.0 (Type-A) |
| Front USB Ports | 1 x USB 5Gbps Type-C 1 x USB 5Gbps header (2 ports) 3 x USB 2.0 headers (6 ports) |
| Audio | Realtek 7.1 Surround HD Audio CODEC Jack detection, multi-streaming, retasking Up to 24-bit / 192kHz playback Audio shielding, premium capacitors |

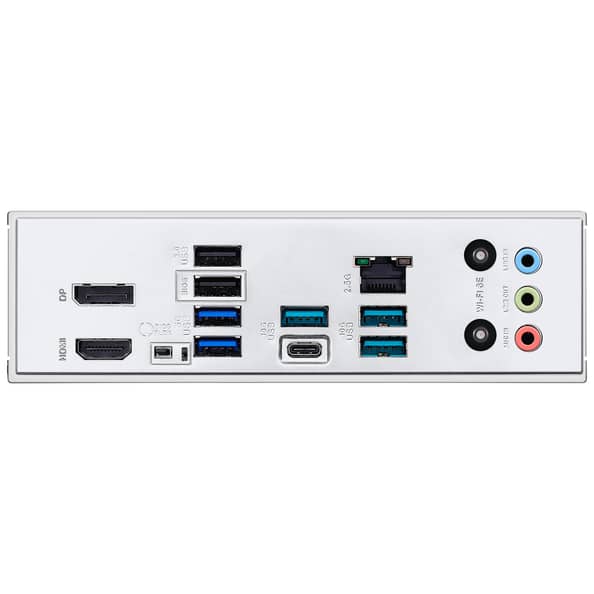

| Back Panel I/O | 1 x USB 10Gbps (Type-C) 3 x USB 10Gbps (Type-A) 2 x USB 5Gbps (Type-A) 2 x USB 2.0 (Type-A) 1 x DisplayPort, 1 x HDMI 1 x Wi-Fi module, 1 x 2.5Gb Ethernet 3 x Audio jacks, 1 x BIOS FlashBack™ |
| Internal Connectors | – 1 x 24-pin ATX Power – 1 x 8-pin + 1 x 4-pin CPU Power – 3 x M.2, 4 x SATA 6Gb/s – 1 x USB 5Gbps Type-C, 1 x USB 5Gbps header (2 ports) – 3 x USB 2.0 headers (6 ports) – 4 x Chassis Fan, 1 x CPU Fan, 1 x AIO Pump – 3 x RGB Gen 2, CMOS, COM, TPM, Thunderbolt header |
| Special Features | ASUS 5X Protection III Q-Design (Q-LED Core, Q-Antenna, Q-DIMM, etc.) Aura Sync RGB (3 x Gen 2 headers) EZ DIY tools (BIOS FlashBack™, Pre-mounted I/O shield) |
| Software | Armoury Crate, Fan Xpert 2+, Aura Creator ASUS AI Advisor, Driver Hub, GlideX, TurboV Core ASUS CPU-Z, Creative Cloud (Trial), Norton (Trial), WinRAR |
| BIOS | 256 Mb UEFI AMI BIOS CrashFree BIOS 3, EZ Flash 3, EZ Mode, MyHotkey |
| Accessories | 2 x SATA cables 1 x Wi-Fi Antenna M.2 rubber + screw packages Quick Start Guide |
| OS Support | Windows® 11, Windows® 10 (64-bit) |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| CPU | |
| CPU Manufacturer | AMD |
| CPU Socket | AM5 |
| Lighting | |
| Lighting / RGB | Yes |
| Form Factor | |
| Motherboard formfactor | ATX |
| Back Connect | |
| Back Connect | No |
| Colour | |
| Primary Colour | Black |
| Secondary Colour | White |
| Motherboard | |
| Motherboard Chipset | AMD B850 |
| Wi-Fi & LAN | |
| LAN | Yes |
| LAN Ports | 1x 2.5 Gbit/s |
| Wi-Fi / Bluetooth | Yes |
| Wi-Fi Standard | Wi-Fi 6E |
| Bluetooth Standard | 5.3 |
| Memory | |
| Max. Memory | 256 GB |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Max. Memory Speed (OC) | 8000 MT/s |
| EEC Support | Yes |
| Memory slots | 4x |
| Performance Profile | AMD EXPO |
| Expansion Slots | |
| PCIe x16 slots (total) | 1 |
| PCIe x4 slots (total) | 1 |
| PCIe x1 slots (total) | 2 |
| PCIe 5.0 x16 mechanical slot | 1 |
| PCIe 4.0 x16 mechanical slot | 1 |
| PCIe 3.0 x16 mechanical slot | 2 |
| Fan Header | |
| 4 Pin Fan Connectors | 7 |
| Internal Ports | |
| CPU Power Supply | 1x 4-Pin + 1x 8-Pin |
| USB4 (internal) Header | 1 |
| USB 3.0 / 3.1 / 3.2 (internal) Type C Header | 1 |
| USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports | 1 |
| USB 3.0 (internal) Header | 1 |
| USB 3.0 (internal) Possible Ports | 2 |
| USB 2.0 (internal) Header | 3 |
| USB 2.0 (internal) Possible Ports | 6 |
| RGB / LED connectors | 3x Digital RGB (3-Pin 5VDG) |
| Front Panel Audio Header | Yes |
| SPI TPM Header | Yes |
| External Ports | |
| USB 3.1 (external) Type C | 1 |
| USB 3.1 (external) Type A | 3 |
| USB 3.0 (external) Type A | 2 |
| USB 2.0 (external) Type A | 2 |
| Display Connectors | HDMI (1x), Display Port (1x) |
| Storage Ports | |
| M.2 PCIe 4.0 x2 | 1 |
| M.2 PCIe 4.0 x4 | 1 |
| M.2 PCIe 5.0 x4 | 1 |
| SATA 6G (internal) | 4 |
| Cooling | |
| M.2 Heatsinks | Yes |
| VRM Heatsinks | Yes |
