£873.99
Most items are in stock at our Lewisham shop. Anything not on the shelf is sourced within 5–7 working days. Call 020 8037 0653 to check before you travel.

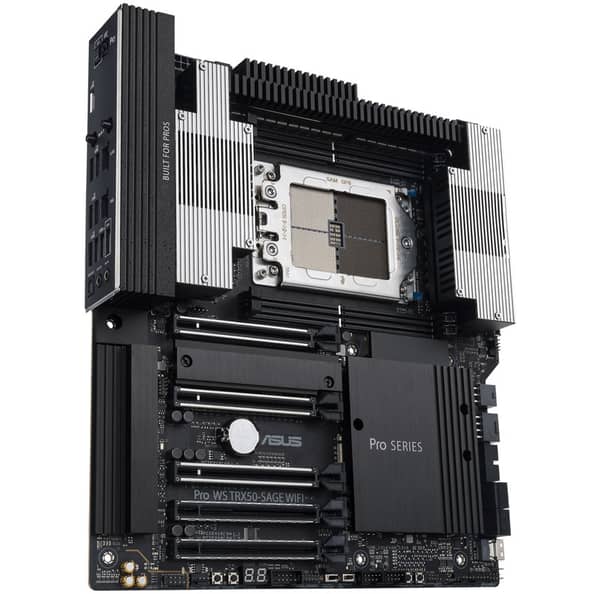

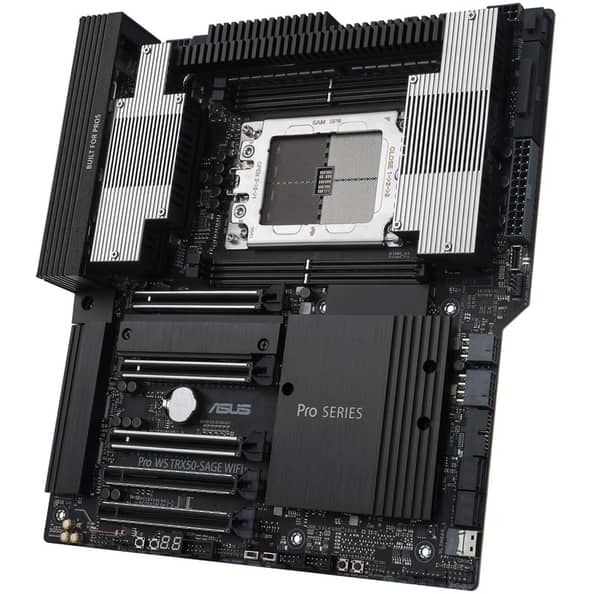

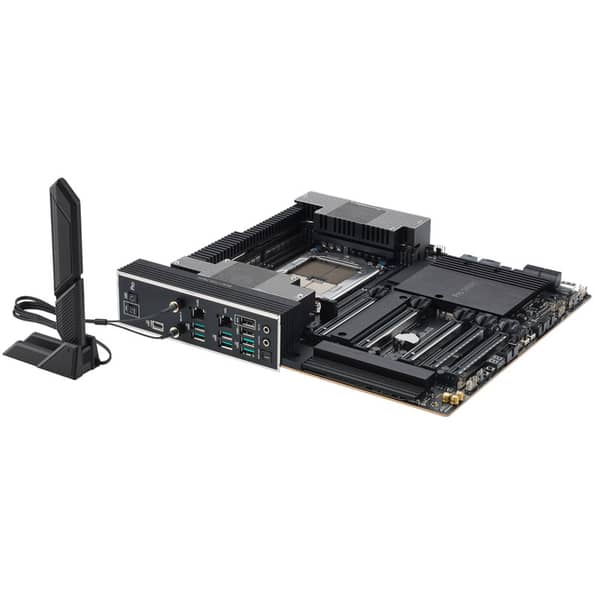

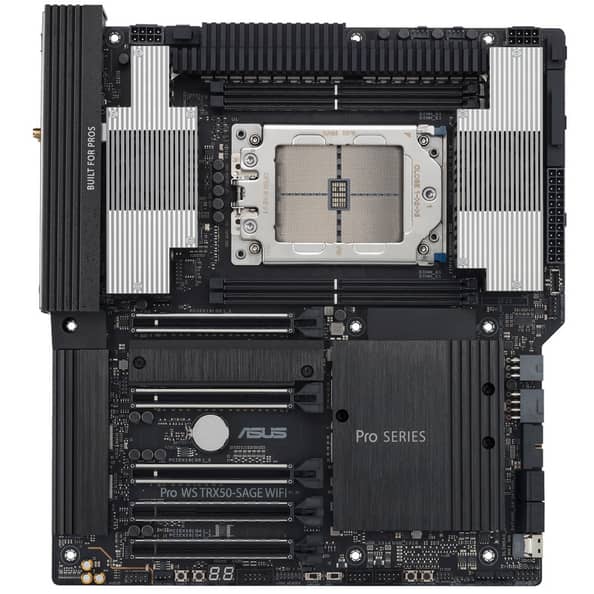

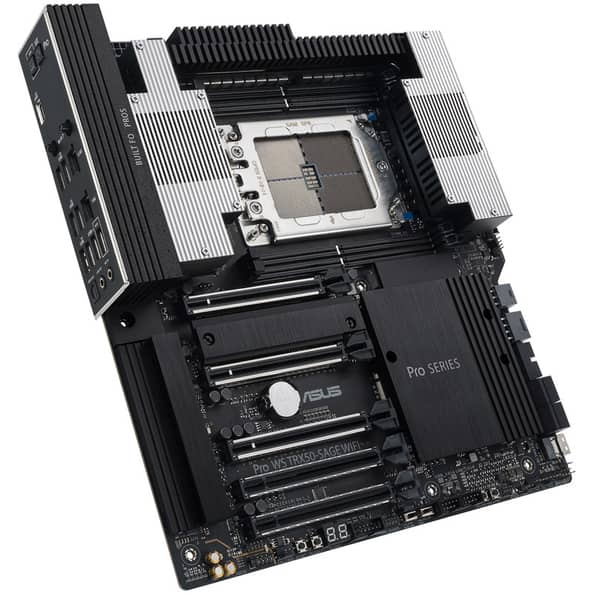

| Model | Pro WS TRX50-SAGE WIFI |
|---|---|
| CPU Support | AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series |
| Chipset | AMD TRX50 |
| Memory | 4 x DDR5 DIMM slots, ECC Registered, 4-channel |
| Expansion Slots | 2 x PCIe 5.0 x16 1 x PCIe 5.0 x16 (x8 mode) 1 x PCIe 4.0 x16 1 x PCIe 4.0 x16 (x4 mode) |
| Storage | 3 x M.2 (2 x PCIe 5.0 x4, 1 x PCIe 4.0 x4) 4 x SATA 6Gb/s 1 x SlimSAS (PCIe 4.0 x4) AMD RAIDXpert2 support for RAID 0/1/5/10 |
| Ethernet | 1 x Marvell® AQtion 10Gb 1 x Intel® I226-LM 2.5Gb |
| Wireless & Bluetooth | Wi-Fi 7 (2×2, 2.4/5/6GHz, 160MHz, up to 2.9Gbps) Bluetooth® v5.4 |
| Rear USB Ports | 1 x USB 20Gbps Type-C 6 x USB 10Gbps Type-A 2 x USB 2.0 Type-A |
| Front USB Ports | 1 x USB 20Gbps Type-C (27W PD/QC4+) 1 x USB 5Gbps header (2 ports) 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek ALC1220P HD Audio CODEC 120 dB SNR playback / 113 dB SNR recording Supports 32-bit/192kHz playback Audio shielding, S/PDIF out, de-pop circuit 5.1 Surround Sound support (front HD audio module required) |

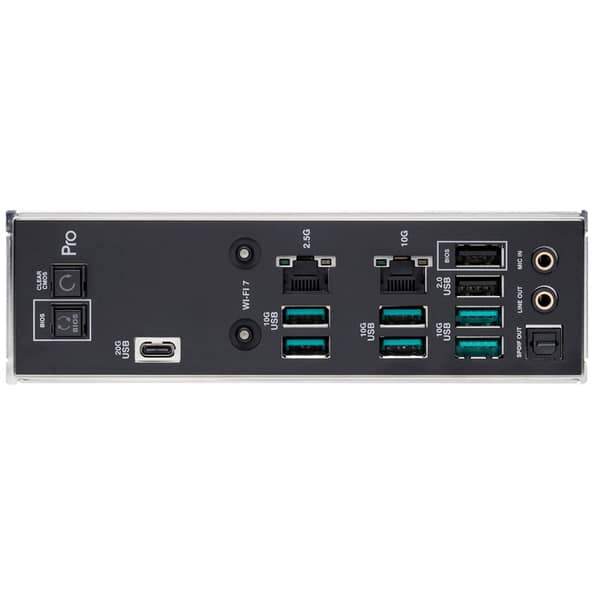

| Back Panel I/O | 1 x USB 20Gbps Type-C 6 x USB 10Gbps Type-A 2 x USB 2.0 Type-A 1 x Wi-Fi module 1 x 10Gb Ethernet 1 x 2.5Gb Ethernet 2 x Audio jacks 1 x Optical S/PDIF 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Internal I/O | Cooling: – 1 x CPU fan – 1 x CPU OPT fan – 1 x W_PUMP+ – 4 x Chassis fans – 2 x VRM fans Power: Storage: USB: Misc: |
| Special Features | ASUS Q-Design (Q-Code, Q-Latch, Q-LED, Q-Slot, etc.) ASUS Thermal Solutions (heatsinks, VRM fans) ASUS EZ DIY (BIOS FlashBack™, SafeSlot, etc.) Business Features: 24/7 reliability, Overcurrent Protection |
| Software | ASUS Armoury Crate ASUS CPU-Z ASUS Control Center Express Free trials: Adobe Creative Cloud, Norton 360, WinRAR |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS ASUS EZ DIY: CrashFree BIOS 3, EZ Flash, FlexKey |
| Manageability | WOL by PME, PXE (UEFI) |

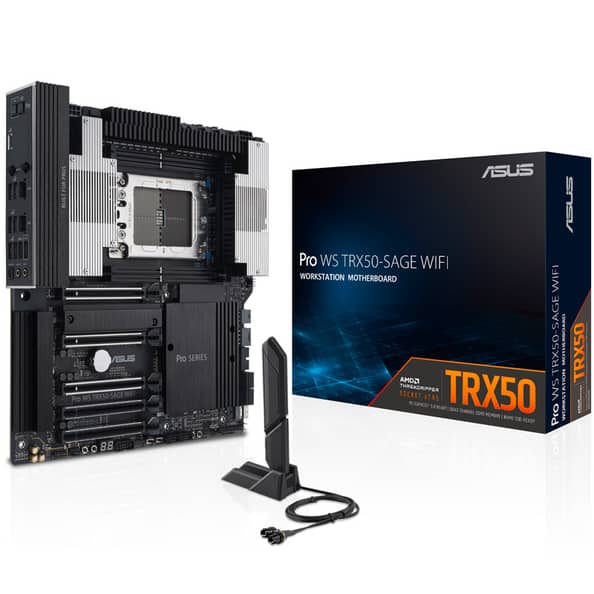

| Accessories | 2 x SATA 6Gb/s cables 1 x CPU 8-pin to PCIe 8-pin adapter 1 x Thermistor cable 1 x WiFi Q-Antenna 2 x M.2 Rubber Packages 1 x Q-Connector 1 x ACC Express Activation Card 1 x Quick Start Guide |
| OS Support | Windows® 11 |
| Form Factor | CEB (12 in x 11 in / 30.5 cm x 28.3 cm) |
| Motherboard | |
| BIOS Flashback Button | Yes |
| Motherboard Features | M.2 Quick Release, Debug LEDs, Q-CODE Display, Onboard Power Buttons |
| Clear CMOS Button | Yes |
| Motherboard Chipset | AMD TRX50 |
| Dual BIOS | No |
| Built-In I/O Shield | Yes |
| Wi-Fi & LAN | |
| LAN | Yes |
| LAN Ports | 1x 2.5 Gbit/s, 1x 10 Gbit/s |
| Wi-Fi / Bluetooth | Yes |
| Wi-Fi Standard | Wi-Fi 7 |
| Bluetooth Standard | 5.4 |
| Colour | |
| Primary Colour | Black |
| Secondary Colour | Silver |
| CPU | |
| CPU Manufacturer | AMD |
| CPU Socket | sTR5 |
| Lighting | |
| Lighting / RGB | No |
| Form Factor | |
| Motherboard formfactor | CEB |
| Water Cooling | |
| Watercooling | No |
| Back Connect | |
| Back Connect | No |
| Display | |
| Display Included | No |
| Fan Header | |
| 4 Pin Fan Connectors | 8 |
| Internal Ports | |
| CPU Power Supply | 2x 8-Pin |
| USB4 (internal) Header | 1 |
| USB 3.0 / 3.1 / 3.2 (internal) Type C Header | 1 |
| USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports | 1 |
| USB 3.0 (internal) Header | 1 |
| USB 3.0 (internal) Possible Ports | 2 |
| USB 2.0 (internal) Header | 2 |
| USB 2.0 (internal) Possible Ports | 4 |
| Front Panel Audio Header | Yes |
| SPI TPM Header | Yes |
| Expansion Slots | |
| PCIe x16 slots (total) | 5 |
| PCIe 5.0 x16 mechanical slot | 3 |
| PCIe 4.0 x16 mechanical slot | 2 |
| Memory | |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| EEC Support | Yes |
| Memory slots | 4x |
| External Ports | |
| USB 3.2 (external) Type C | 1 |
| USB 3.2 (external) Type A | 6 |
| USB 2.0 (external) Type A | 2 |
| Audio outputs | 3.5 mm jack (total) 2x, S/PDIF optical (TOSLINK) 1x |
| Cooling | |
| Backplate | No |
| M.2 Heatsinks | Yes |
| VRM Heatsinks | Yes |
| Storage Ports | |
| M.2 PCIe 4.0 x4 | 1 |
| M.2 PCIe 5.0 x4 | 2 |
| SAS (internal) | 1 |
| SATA 6G (internal) | 4 |
| Audio | |
| Soundchip | Realtek ALC1220P |
| Compatibility | |
| Compatibility Note | Please refer to the manufacturer’s compatibility information. You can find the latest overview on the manufacturer’s website. |
| Power Specifications | |
| Power Stages (VRMs) | 36+3+4+4 |
