£519.95

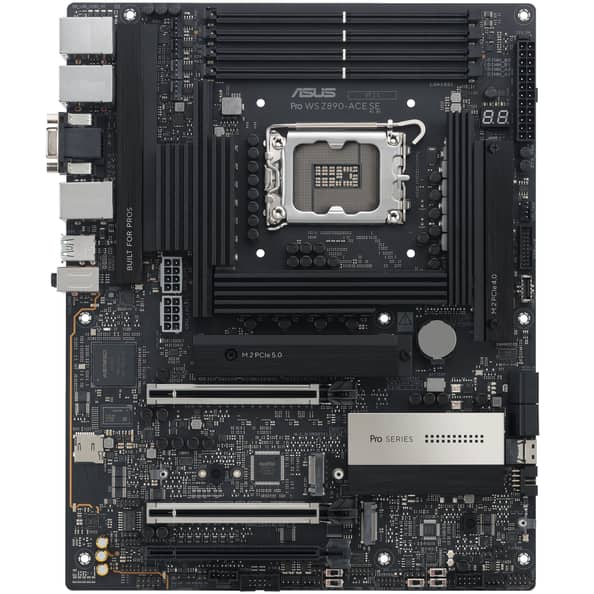

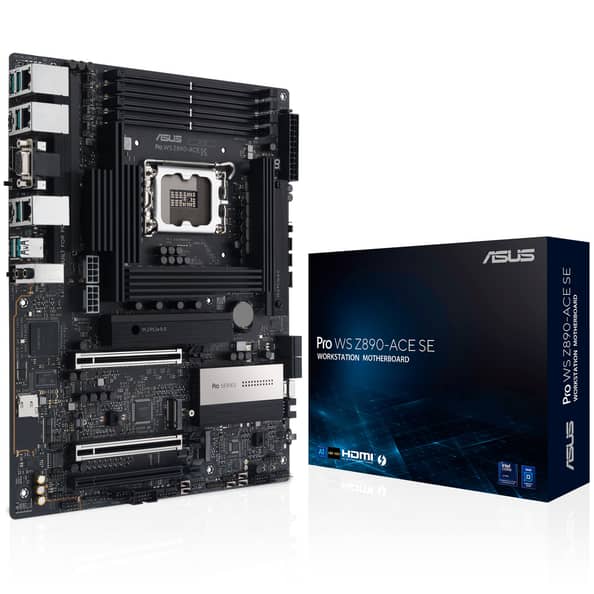

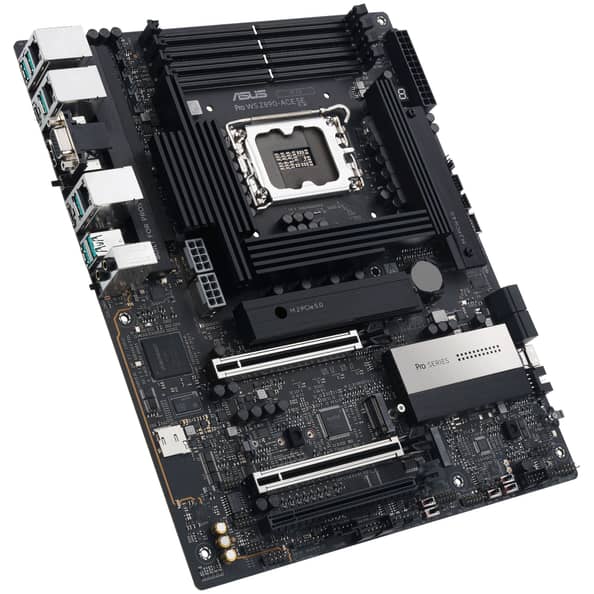

| Model | Pro WS Z890-ACE SE |
|---|---|
| CPU | Supports Intelยฎ Coreโข Ultra Processors (Series 2), LGA1851 Intelยฎ Turbo Boost Technology 2.0 and 3.0 (depending on CPU) |
| Chipset | Intelยฎ Z890 Chipset |
| Memory | 4 x DIMM slots, up to 256GB DDR5 Up to 9066+MT/s (OC), Non-ECC, un-buffered Dual channel, DIMM Fit, DIMM Flex Supports Intelยฎ XMP, ASUS AEMP III |
| Graphics | 1 x HDMIโข port (4K@60Hz) 1 x Thunderboltโข 4 (USB-C, supports DisplayPort & Thunderbolt outputs) 1 x VGA (AST2600) |
| Expansion Slots | 2 x PCIe 5.0 x16 (x16 or x8/x8) 1 x PCIe 4.0 x16 (x4 mode) |
| Storage | 4 x M.2 slots: – M.2_1 (PCIe 5.0 x4) – M.2_2 (PCIe 4.0 x4) – M.2_3 (PCIe 4.0 x4) – M.2_4 (PCIe 4.0 x4) 1 x SlimSAS (PCIe 4.0 x4 or 4 x SATA) 4 x SATA 6Gb/s ports Supports RAID 0/1/5/10 |
| Ethernet | 1 x Marvellยฎ AQtion 10GbE 1 x Intelยฎ 2.5GbE 1 x Realtek 1GbE (AST2600) |
| USB | Rear (8 ports): – 1 x Thunderboltโข 4 (USB-C) – 1 x USB 20Gbps (USB-C) – 6 x USB 10Gbps (Type-A) Front (7 ports): – 1 x USB 20Gbps (USB-C) – 2 x USB 5Gbps – 4 x USB 2.0 |
| Audio | Realtek ALC1220P 7.1 HD Audio CODEC 32-bit/192kHz playback Premium capacitors, shielding, jack-retasking |

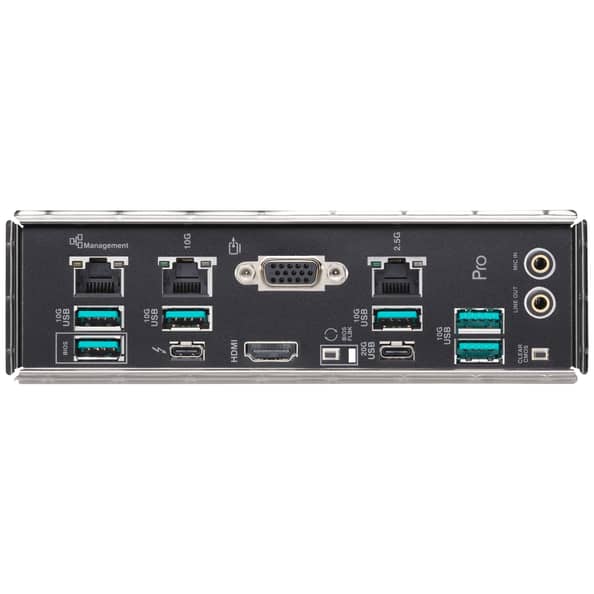

| Back Panel I/O | 1 x Thunderboltโข 4 (USB-C) 1 x USB 20Gbps (USB-C) 6 x USB 10Gbps (Type-A) 1 x HDMIโข port 3 x Ethernet ports 2 x Audio jacks 1 x BIOS FlashBackโข button 1 x Clear CMOS button |
| Internal I/O | 1 x 24-pin ATX power 2 x 8-pin CPU power 1 x CPU Fan, 1 x CPU OPT Fan 5 x Chassis Fans, 1 x W_PUMP+ 4 x M.2 slots, 4 x SATA USB headers: 20Gbps (USB-C), 5Gbps, 2.0 Audio, TPM, Thunderbolt header, etc. |
| Special Features | ASUS 5X Protection III, Q-Design, Q-LED, SafeSlot, SafeDIMM Armoury Crate, Fan Xpert 4, BIOS FlashBack, AI Overclocking |
| Remote Management | BMC (AST2600) with dedicated Realtek 1GbE ASUS Control Center Express (ACCE) support microSD card socket, debug headers, LEDs |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Accessories | 2 x SATA cables, I/O shield M.2 Q-Latch & rubber packages Q-Connector Documentation & software trials |
| OS Support | Windows 11 (22H2+), Windows 10 64-bit (21H2+) |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| Motherboard | |
| Motherboard Chipset | Intel Z890 |
| Dual BIOS | No |
| Built-In I/O Shield | No |
| Form Factor | |
| Motherboard formfactor | ATX |
| Lighting | |
| Lighting / RGB | No |
| External Ports | |
| USB4 Gen 3×2 (external) Type C | 1 |
| USB 3.2 (external) Type C | 1 |
| USB 3.1 (external) Type A | 6 |
| Colour | |
| Primary Colour | Black |
| CPU | |
| CPU Manufacturer | Intel |
| CPU Socket | 1851 |
| Wi-Fi & LAN | |
| LAN | Yes |
| LAN Ports | 3x (in total) |
| Wi-Fi / Bluetooth | No |
| Memory | |
| Max. Memory | 256 GB |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| System Memory Subtype | UDIMM, CUDIMM |
| Max. Memory Speed (OC) | 9066 MT/s |
| EEC Support | No |
| Memory slots | 4x |
| Performance Profile | Intel XMP 3.0 |
| Expansion Slots | |
| PCIe x16 slots (total) | 2 |
| PCIe x4 slots (total) | 1 |
| PCIe 5.0 x16 mechanical slot | 2 |
| PCIe 4.0 x16 mechanical slot | 1 |
| Fan Header | |
| 4 Pin Fan Connectors | 8 |
| Internal Ports | |
| CPU Power Supply | 2x 8-Pin |
| USB4 (internal) Header | 1 |
| USB 3.0 / 3.1 / 3.2 (internal) Type C Header | 1 |
| USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports | 1 |
| USB 3.0 (internal) Header | 1 |
| USB 3.0 (internal) Possible Ports | 2 |
| USB 2.0 (internal) Header | 2 |
| USB 2.0 (internal) Possible Ports | 4 |
| Front Panel Audio Header | Yes |
| SPI TPM Header | Yes |
| Cooling | |
| Backplate | No |
| M.2 Heatsinks | Yes |
| VRM Heatsinks | Yes |
| Storage Ports | |
| M.2 PCIe 4.0 x4 | 3 |
| M.2 PCIe 5.0 x4 | 1 |
| SATA 6G (internal) | 8 |
| Audio | |
| Soundchip | Realtek ALC1220P |
