| Product |

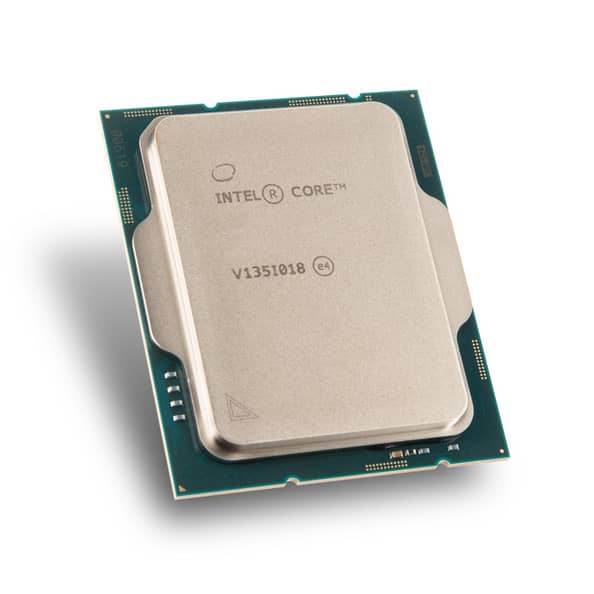

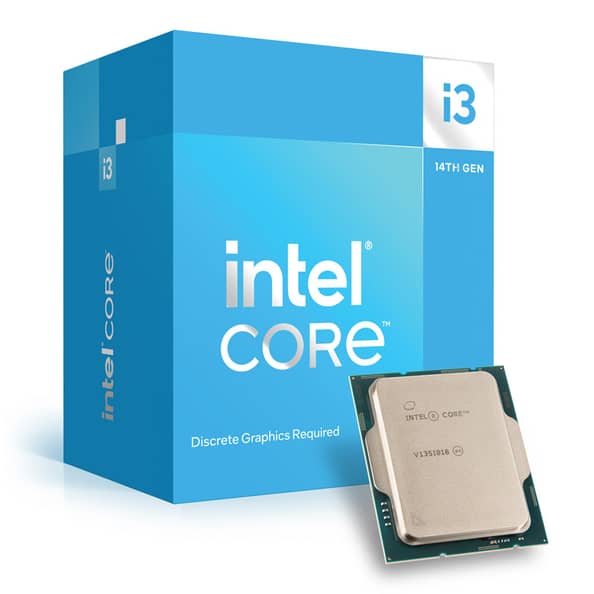

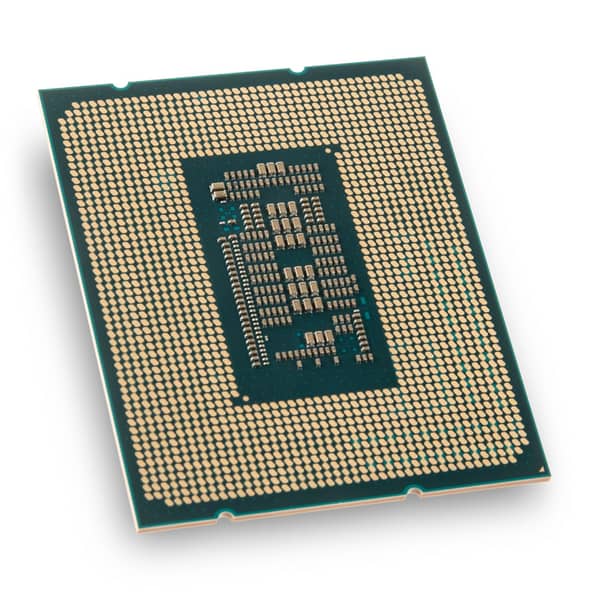

Intelยฎ Coreโข i3 processor 14100F (12M Cache – up to 4.70 GHz) |
| Essentials |
Product Collection: Intelยฎ Coreโข i3 Processors (14th gen) |
| Code Name: Products formerly Raptor Lake |
| Vertical Segment: Desktop |
| Processor Number: i3-14100F |
| Lithography: Intel 7 |
| CPU Specifications |
Total Cores: 4 |
| # of Performance-cores: 4 |
| # of Efficient-cores: 0 |
| Total Threads: 8 |
| Max Turbo Frequency: 4.7 GHz |
| Performance-core Max Turbo Frequency: 4.7 GHz |
| Performance-core Base Frequency: 3.5 GHz |
| Cache: 12 MB Intelยฎ Smart Cache |
| Total L2 Cache: 5 MB |
| Processor Base Power: 58 W |
| Maximum Turbo Power: 110 W |
| Supplemental Information |
Marketing Status: Launched |
| Launch Date: Q1’24 |
| Embedded Options Available: No |
| Use Conditions: PC / Client / Tablet |
| Datasheet: View now |
| Memory Specifications |
Max Memory Size: 192 GB |
| Memory Types: Up to DDR5 4800 MT/s / DDR4 3200 MT/s |
| Max # of Memory Channels: 2 |
| Max Memory Bandwidth: 76.8 GB/s |
| Expansion Options |
Direct Media Interface (DMI) Revision: 4 |
| Max # of DMI Lanes: 8 |
| Scalability: 1S Only |
| PCI Express Revision: 5.0 and 4.0 |
| PCI Express Configurations: Up to 1×16+4 | 2×8+4 |
| Max # of PCI Express Lanes: 20 |
| Package Specifications |
Sockets Supported: FCLGA1700 |
| Max CPU Configuration: 1 |
| Thermal Solution Specification: PCG 2020C |
| TJUNCTION: 100ยฐC |
| Package Size: 45.0 mm x 37.5 mm |
| Max Operating Temperature: 100 ยฐC |
| Advanced Technologies |
Intelยฎ Gaussian & Neural Accelerator: 3 |
| Intelยฎ Deep Learning Boost (Intelยฎ DL Boost): Yes |
| Intelยฎ Speed Shift Technology: Yes |
| Intelยฎ Turbo Boost Technology: 2 |
| Intelยฎ Hyper-Threading Technology: Yes |
| Intelยฎ 64: Yes |
| Instruction Set: 64-bit |
| Instruction Set Extensions: Intelยฎ SSE4.1 / SSE4.2 / AVX2 |
| Idle States: Yes |
| Enhanced Intel SpeedStepยฎ Technology: Yes |
| Thermal Monitoring Technologies: Yes |
| Intelยฎ Volume Management Device (VMD): Yes |
| Security & Reliability |
Intelยฎ Standard Manageability (ISM): Yes |
| Intelยฎ Secure Key: Yes |
| Intelยฎ Control-Flow Enforcement Technology: Yes |
| Intelยฎ AES New Instructions: Yes |
| Intelยฎ OS Guard: Yes |
| Execute Disable Bit: Yes |
| Intelยฎ Boot Guard: Yes |
| Mode-based Execute Control (MBEC): Yes |
| Intelยฎ Virtualization Technology (VT-x): Yes |
| Intelยฎ Virtualization Technology for Directed I/O (VT-d): Yes |
| Intelยฎ VT-x with Extended Page Tables (EPT): Yes |
